Tutorial | How To Extract Your Phones Filesystem

Started by Willyy1991, Feb 09 2007 04:30 PM

Next
»

Please log in to reply

124 replies to this topic

#1 OFFLINE Willyy1991

New Members

Non-se-nse

186 posts

Gender:Male
Location:Lebanon
Tutorials Submitted:1

Posted 09 February 2007 - 04:30 PM

First download the files we're going to need:
Main2Raw
SEFStool (megaupload)

Then go to the download section and download your firmware;
for example I will get the w810i firmware (you need to download the FS, not the MAIN!)
Posted Image

(just for those who dont know...)

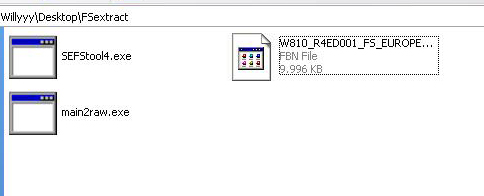

Now extract the .exe's of SEFStool & Main2Raw to the same directory on your desktop (you can move them later) then open that directory and put the firmware you wish to extract in it... now you'll have:
Posted Image

then select the FS firmware and drag it to the main2raw.exe, it will extract a file, the folder now should look like this:
Posted Image

now.. i had a problem with dragging the .raw to sefstool, but if dragging the raw file to SEFStool4.exe worked you dont have to do this:
it would only give me a .FS file, not a folder... the way I did it was using the command promt. To get to the command prompt go to start>run and type cmd, once in the command prompt type this:
cd %userprofile%\Desktop\FSExtract (or the name of the folder you chose when extracting the executables)
then type sefstool4.exe <filename.raw> (e.g. "sefstool4.exe W810_R4ED001_FS_EUROPE_3_RED49.raw")
Posted Image

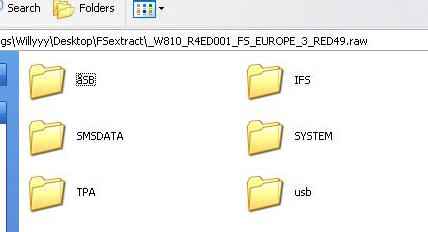

then it will get working and when its done you will have a folder called W810_R4ED001_FS_EUROPE_3_RED49 in the directory you had the .raw file, that is the file system of your phones firmware...
At final you'll have:
Posted Image

This could be handy for people who don't know where to put there files or just want to experiment with their phones...
i made this as noob as i could and described each step... ill hope it will help some out...
and i couldn't put this in the tutorial forum so if an admin would like to do it if he finds it helpful...

Attached Files

SEFStool4.7.rar 31.42K 661 downloads
main2raw2.1.rar 23.57K 590 downloads

Edited by Boysie, 18 February 2011 - 10:06 AM.
Added new versions

Back to top

#2 OFFLINE netmaniack

New Members

Padawan

47 posts

Posted 09 February 2007 - 04:43 PM

thx this is very usefull

Back to top

#3 OFFLINE Willyy1991

New Members

Non-se-nse

186 posts

Gender:Male
Location:Lebanon
Tutorials Submitted:1

Posted 09 February 2007 - 06:05 PM

sorry for the inconvience but you can get the firmwares frop http://www.topsony.com
!

Back to top

#4 OFFLINE Karun

VIP

Avenger

2,821 posts

Gender:Male
Location:India
Mobile:Xperia X8,K750i, G700, W350, R300, W595

Posted 10 February 2007 - 07:48 AM

Willyy1991, on 2007-02-09 18:05, said:

sorry for the inconvience but you can get the firmwares frop http://www.topsony.com
!

topsony is a pay site now......but nice tutorial :good:

My Blog Usb flash drivers My Patches SE Handy Info

Back to top

#5 OFFLINE Rekoil

VIP

iKoil =]

2,623 posts

Gender:Male
Location:Gothenburg, Sweden
Mobile:16gb 1st gen iPhone: pwned 2.2 ;)

Posted 10 February 2007 - 09:35 AM

I've corrected some of the grammar and spelling in your post and moved it to the tutorials section.

Also could you please upload the needed tools in a zip file here at se-nse as you can no longer download them from TopSony for free.

Status: I'll be back!

Back to top

#6 OFFLINE Willyy1991

New Members

Non-se-nse

186 posts

Gender:Male
Location:Lebanon
Tutorials Submitted:1

Posted 10 February 2007 - 09:15 PM

hmm thats so lame...
i didnt expect that from topsony,
but ill search the files when im home and put them on an ftp for direct download..
thanks for your comments & rekoil thanks for moving it and the corrections you made

Back to top

#7 OFFLINE geko67

New Members

Padawan

20 posts

Posted 12 February 2007 - 10:55 AM

I can extract a db 2020 directory!"!!why?

Phone:black carbon"k610i"
Firmware:R1ED001 CID49
Partial modded byRekoil

Back to top

#8 OFFLINE Rekoil

VIP

iKoil =]

2,623 posts

Gender:Male
Location:Gothenburg, Sweden
Mobile:16gb 1st gen iPhone: pwned 2.2 ;)

Posted 12 February 2007 - 12:11 PM

You need new tools for DB2020.

I have attached ones that work with DB2020.

Attached Files

db2020_filesystem_parser.rar 53.9K 1739 downloads

Status: I'll be back!

Back to top

#9 OFFLINE geko67

New Members

Padawan

20 posts

Posted 12 February 2007 - 01:24 PM

Still nothing!! I use a newoane sefstool v4.7 ,i try to use rek's pack... my screen blincking and goes out!! or ...syntax error!

Phone:black carbon"k610i"
Firmware:R1ED001 CID49
Partial modded byRekoil

Back to top

#10 OFFLINE geko67

New Members

Padawan

20 posts

Posted 12 February 2007 - 01:58 PM

DONE!!

Phone:black carbon"k610i"
Firmware:R1ED001 CID49
Partial modded byRekoil

Back to top

#11 OFFLINE brlock

New Members

No Se-nse

72 posts

Location:Porto, Portugal
Mobile:k750i brown CID49

Posted 17 February 2007 - 11:50 PM

I've trying to use sefstool to extract files from K750_R1CA021_FS_EUROPE_1_RED36 and K750_R1CA021_FS_EUROPE_1_RED49 (and others as well) and it always hangs in the same error.

(#)Supported phones: z530, k610, k790/800, w550, w810, w850, w900

Is there any version that is good for k750 fws?

Edited by brlock, 17 February 2007 - 11:57 PM.

Back to top

#12 OFFLINE brlock

New Members

No Se-nse

72 posts

Location:Porto, Portugal
Mobile:k750i brown CID49

Posted 17 February 2007 - 11:56 PM

is there a program to extract FS from k750 fw?

Back to top

#13 OFFLINE xsound91

New Members

n00b

15 posts

Gender:Male
Location:Canada
Mobile:SE W810i

Posted 28 February 2007 - 02:57 AM

k im having problems with this SEFStool4 keeps crashing on me and i dont understand the whole command process so i was wondering if somebody could get me the fs for W810_R4DB005_FS_AMERICA_2_RED49.zip

heres the link to the file thanks in advance

http://tblatvia.bmx....ICA_2_RED49.zip

Back to top

#14 OFFLINE Willyy1991

New Members

Non-se-nse

186 posts

Gender:Male
Location:Lebanon
Tutorials Submitted:1

Posted 28 February 2007 - 12:58 PM

xsound91, on 2007-02-28 03:57, said:

k im having problems with this SEFStool4 keeps crashing on me and i dont understand the whole command process so i was wondering if somebody could get me the fs for W810_R4DB005_FS_AMERICA_2_RED49.zip

heres the link to the file thanks in advance
http://tblatvia.bmx....ICA_2_RED49.zip

http://forums.se-nse...?showtopic=7699
....

Back to top

#15 OFFLINE ono_kha

New Members

n00b

9 posts

Posted 01 March 2007 - 09:28 AM

i tried to extract w550_r2e_dcu.raw with SEFStool4.exe.
there's an error appears in the prompt:

FATAL: No FS description block found @ $00000000

Could you tell me something about this?

Back to top

#16 OFFLINE randolf_ambrose

New Members

Non-se-nse

195 posts

Gender:Male
Location:http://www.rahulrkrishnan.co.nr
Mobile:K750i - R1CA021 CID 49 De-branded
Twitter:lordificated

Posted 31 March 2007 - 04:20 PM

can you help me with the FS of K750 CID46BROWN
i have SEFP plugin...

i wanted to change my menu icons... but currently, as i'm not having FS, i am unable to do it...

please help... where to download FS...

can you guide me through the process.........

A M B R O S E - http://www.rahulrkrishnan.co.nr
Phone : K750i (the little soundblaster in my pocket!!!)
{Toshara's Accoustics / Sarmad's 5.8 Cam / Lots of Patches / Lots of Custom Mods} {back to K750i R1CA021}
Credits: Se-nse

Back to top

#17 OFFLINE nabiladeeb

New Members

Makes Se-nse

481 posts

Gender:Male
Location:Piscataway,NJ, USA
Mobile:K750i@w800i & w580i

Posted 31 March 2007 - 05:52 PM

we have most of the firmwares here.....
http://forums.se-nse...?showtopic=7699

NABIL
My SE Files : nabiladeeb-se.4shared.com

Back to top

#18 OFFLINE shad0w

New Members

n00b

10 posts

Posted 02 April 2007 - 10:59 AM

thanx for the tuto but could u upload the SEFStool somewhere else i cant dl from mu!

Back to top

#19 OFFLINE MWP

New Members

Non-se-nse

133 posts

Posted 12 April 2007 - 08:51 PM

ono_kha, on 2007-03-01 02:28, said:

i tried to extract w550_r2e_dcu.raw with SEFStool4.exe.
there's an error appears in the prompt:

FATAL: No FS description block found @ $00000000

Could you tell me something about this?

I get the same thing when trying to extract w800 FS from W800_R1AA008_ZONE1_STANDARD.RAW
Hmmmmm Did I do something wrong?

------------------

C:\Documents and Settings\Work\Desktop\fmw>sefstool4.exe W800_R1AA008_ZONE1_STAN
DARD.RAW
(#)SEFStool v4.4 by Darkmen <sephone@nm.ru>, October, 2006
(#)Parsing tool for SonyEricsson phones File System image
(#)Supported raw images from FAT26 phones: w810, k790/800

Loading W800_R1AA008_ZONE1_STANDARD.RAW header...OK!
FATAL: No FS description block found @ $00000000

Edited by MWP, 12 April 2007 - 08:52 PM.

Back to top

#20 OFFLINE tc_terencec

New Members

n00b

5 posts

Posted 01 May 2007 - 06:25 AM

SEFSTOOL4.exe keeps crashing on me when I drag + drop the .raw file onto it, but it still outputs a .fs file. However, when I execute it using command prompt, it just quits on its own. I am trying to unpack the W810i hong kong FS.
